Envy 8/10kW Hybrid Inverter

One powerful hybrid inverter with selectable 8kW or 10kW output — designed for whole-home backup, off-grid living, and seamless solar + storage integration.

Envy 8/10kW Hybrid Inverter

Inversores de conexión a red para uso residencial y comercial

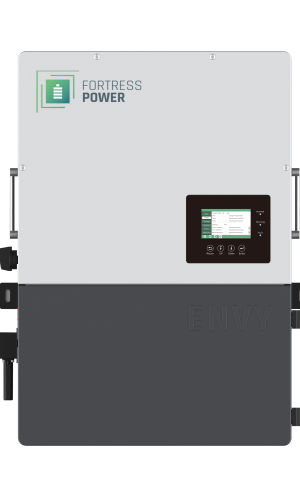

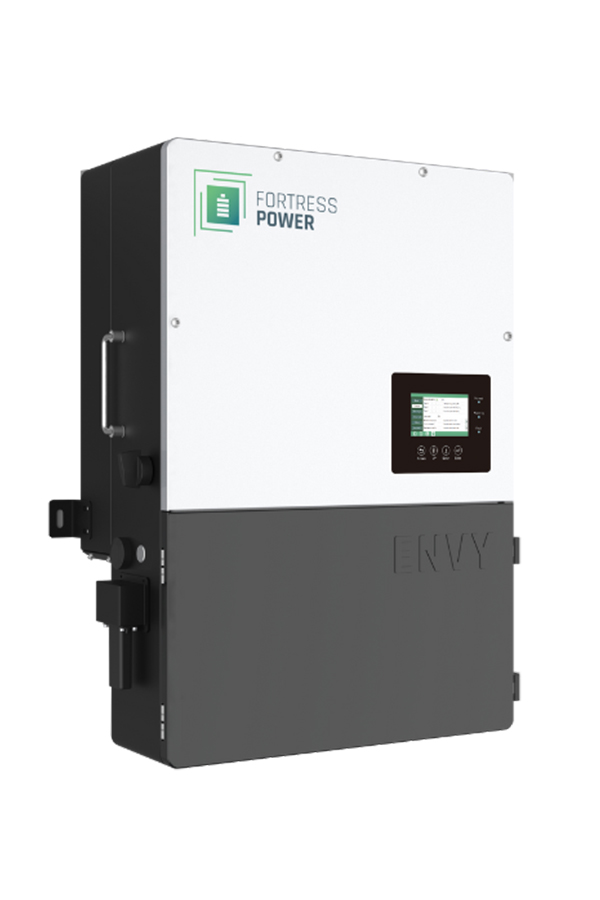

The Fortress Power Envy 8/10kW Hybrid Inverter is an all-in-one solution built for whole-home energy storage and backup. It pairs seamlessly with the eFlex 5.4 kWh, eFlex MAX 5.4 kWh, eVault MAX 18.5 kWh, or LFP-10 MAX batteries and delivers up to 8kW (33.3A @ 240V) or 10kW (41.6A @ 240V) of continuous output through a 60A AC passthrough. With AC and DC coupling, a built-in generator input, and dual MPPTs, the Envy supports up to 13 kW of solar PV input (for 8kW mode) or 15 kW (for 10kW mode), making it ideal for both on-grid and off-grid applications.

Designed for fast, code-compliant installation, the Envy includes integrated AC and DC breakers and a built-in APsmart Module Level Rapid Shutdown Transmitter and Button. System owners and installers can take full control with the Fortress Power Guardian mobile app, offering remote monitoring, performance insights, and firmware updates from anywhere. Approved by utilities across the U.S. and Puerto Rico, the Envy 8/10kW also enables participation in Virtual Power Plant (VPP) programs, allowing you to earn compensation for discharging energy back to the grid during periods of high demand.

Aplicaciones

Residencial

Commercial

FEATURES

  • Powerful, Scalable Solar + Storage Performance

    The Envy 8/10kW Hybrid Inverter delivers up to 13 kW of PV input and offers a selectable 8kW or 10kW continuous output — perfect for whole-home backup or larger residential systems. Need more power? Parallel up to 10 units for a maximum of 80kW or 100kW of AC output.

  • Plug-and-Play Installation for Faster Setup

    Designed with built-in AC and DC breakers and generous internal space for wire management, the Envy enables a streamlined installation process — reducing labor time and simplifying wiring for both retrofit and new systems.

  • Built-In Rapid Shutdown for Code Compliance

    Avoid the hassle of extra components. The Envy 8/10kW features a fully integrated rapid shutdown transmitter, helping your installation meet NEC 2017 & 2020 code requirements without the need for external devices — saving time and cost.

  • Supports Split-Phase and Three-Phase Applications

    The Envy is engineered for residential 120/240V split-phase systems and can also be used in commercial 120/208V or 127/220V three-phase setups with just two or more inverters — offering unmatched versatility for mixed-use projects.

  • Virtual Power Plant (VPP) Ready

    Join utility demand response programs and get paid to support the grid. The Envy is VPP-compatible and approved by utilities across the U.S. and Canada, allowing your Fortress Power system to discharge energy during peak demand and generate ongoing financial rewards.

  • Remote Monitoring and Firmware Updates

    Monitor your solar production, battery performance, and grid consumption anytime via the Fortress Power mobile app. The Envy also supports remote firmware updates, ensuring your system stays up to date without the need for onsite visits.

PRODUCT INFORMATION

Envy 8kWEnvy 10kW
Entrada CC (lado FV)
Max. Potencia de entrada CC para un MPPT6000 W / 6000 W6000 W / 6000 W
Max. Potencia de entrada FV13000W15000W
Max. Potencia FV suministrada a las salidas de batería y CA12000W12000W
Rango de tensión de entrada de CC100V-600V100V-600V
Tensión nominal de entrada de CC360V360V
Rango de tensión MPPT a plena potencia170V-500V210V - 500V
Máx. Corriente de entrada CC25A / 25A25A / 25A
Número de MPPT/(Cadenas por MPPT)2 / 22 / 2
Salida/Entrada CA (Red)
Alimentación continua de CA a la red8000W (240V)10000W (240V)
Alimentación continua de CA a la carga con red o generador14.400 W (240 V) AC Passthrough/ 12.000 W (240) GEN14.400 W (240 V) AC Passthrough/ 12.000 W GEN
Tensión nominal de salida120/240 V monofásico, 120/208 V monofásico, 120/208 V trifásico120/240 V monofásico, 120/208 V monofásico, 120/208 V trifásico
Máx. Corriente alterna continua33,3 A A 240 V41,6 A A 240 V
Frecuencia nominal de CA50 Hz/60 Hz50 Hz/60 Hz
Salida CA (sin red)
Max. Potencia de salida8000W10000W
Tensión nominal de salida120V/240V120V/240V
Frecuencia nominal de salida50 Hz/60 Hz50 Hz/60 Hz
Corriente nominal de salida33,3 A A 240 V41,6 A A 240 V
Potencia máxima16kW / 500ms20 kW / 500 ms
Tiempo de conmutaciónSin fisurasSin fisuras
Puerto dedicado para el generador de arranque automático50A / 12kW50A / 12kW
Parámetros de la batería
Tipo de batería compatibleeVault Max, eFlex, LFP-10 MAXeVault Max, eFlex, LFP-10 MAX
Tensión nominal de la batería48V48V
Rango de tensión de la batería48V-56V48V-56V
Corriente máxima de carga/descarga167A210A
Potencia máxima de carga/descarga8000W10000W
Eficiencia
Eficiencia MPPT99.9%99.9%
Max. Rendimiento97.5%97.5%
Eficiencia de la CEC96.5%96.5%
Protección
Protección antiembarco
Interruptor CC
Grado de protecciónNEMA 4X, IP65NEMA 4X, IP65
Protección SPD
AFCI
RSDTransmisor APsmart integradoTransmisor APsmart integrado
Datos generales
Dimensiones580 x 490 x 265 mm (22,8 x 19,3 x 10,4 pulgadas)580 x 490 x 265 mm (22,8 x 19,3 x 10,4 pulgadas)
Peso44kg (97lbs)44kg (97lbs)
MostrarLCD en colorLCD en color
Temperatura ambienteDe -25 a 60 °C (de -13 a 140 °F)De -25 a 60 °C (de -13 a 140 °F)
RefrigeraciónABANICOABANICO
ComunicaciónRS485/Wi-Fi/CANRS485/Wi-Fi/CAN
Normativa y certificación
CertificacionesUL1741, UL1741SB, IEEE1547A, norma 21, ISO-NE, FCC15 clase B, HECO, CEC, Luma, SGIP, NOMUL1741, UL1741SB, IEEE1547A, norma 21, ISO-NE, FCC15 clase B, HECO, CEC, Luma, SGIP, NOM
Garantía10 años10 años

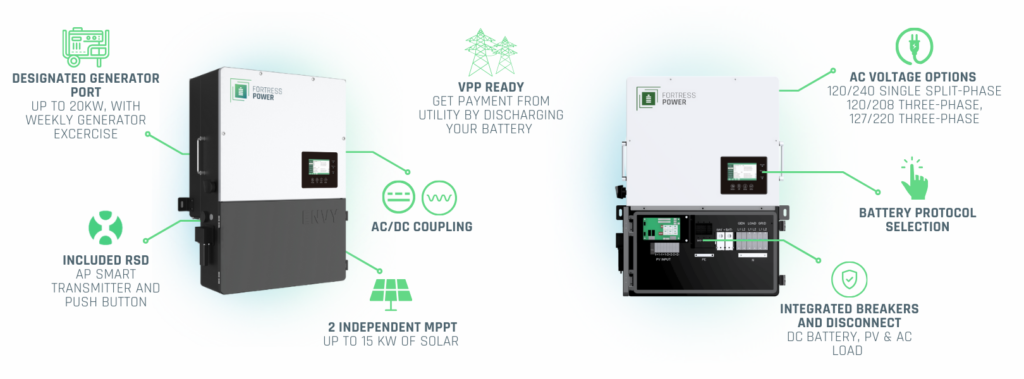

Envy 8/10kW Diagram

VIDEOTECA

PRODUCT COMPATIBILITY

FREEDOM OF CHOICE WITH OUR ENVY INVERTERS!

Our Envy inverters are battery-agnostic!

What does this mean for you? It means you get to choose the battery that aligns with your vision. Our inverters seamlessly integrate with a wide range of lithium batteries. We have compiled a list of all the battery manufacturers you can choose from!

Info Sheet

Download Here

Supervise y controle su inversor Envy desde cualquier lugar y en cualquier momento.

✅ Supervisa el rendimiento de cada batería

✅ Actualización de firmware por aire

✅ Participar en programas de centrales eléctricas virtuales
