Guardian Monitoring | Total System Visibility, Anywhere
Connect your Fortress Power system to the cloud with the Guardian Gateway and mobile app — for real-time monitoring, remote updates, and smarter energy management.
Guardian Gateway
Fortress Power Batteries Just Got Smarter

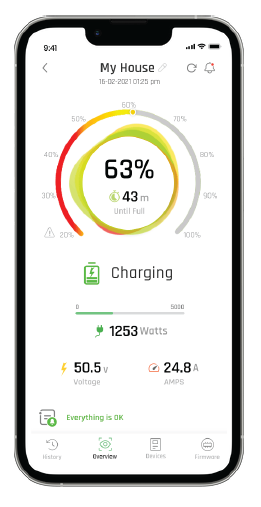

The Fortress Power Guardian Gateway is a smart gateway device that connects your Fortress Power battery system to the cloud, enabling advanced remote monitoring and technical support. Once installed, the Guardian Gateway automatically detects all connected Fortress Power 48V batteries, allowing you to view detailed, real-time data such as State of Charge (SoC), voltage, current, and battery temperature — right down to the individual battery level.

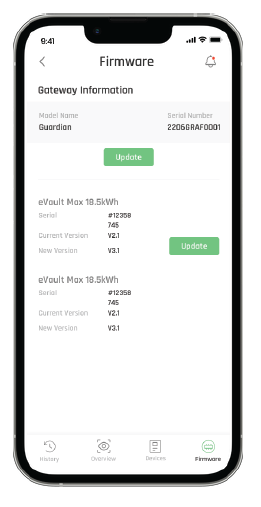

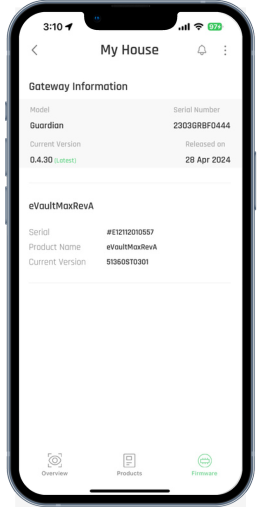

By pairing the Guardian Gateway with the Fortress Power mobile app, users and installers gain access to a full suite of remote tools: firmware updates, live chat with technical support, support ticket submission, and secure data sharing with Fortress engineers. You can also complete warranty registrations, apply for EnergyBroker programs and track system performance, all from a single, easy-to-use platform.
Applications
Residential
Commercial
MOBILE APP FEATURES
Required for VPP and EnergyBroker Program Participation
To qualify for Fortress Power’s Virtual Power Plant (VPP) and EnergyBroker incentive programs, a Guardian device is required. The Guardian enables real-time communication between your battery system and utility partners, allowing your system to securely participate in scheduled grid events. Without it, systems are not eligible for performance-based incentives, bill credits, or participation in approved utility programs.
PRODUCT INFORMATION
|
Electrical Specifications |
|
| Power Consumption | 5W – 24V@1A power supply |
| AC/DC Adapter | 120V / 5A 24V DC 5.5mm |
| Supported Communication Types | 1x MODBUS/TCP, 2x MOBUS/RTU, 2xCAN 2.0 |
| Operation Frequency | 2.4Ghz |
|
Physical Specifications |
|
| Weight (device only) | 0.8 lbs (0.4 kg) |
| Dimensions (device only) (WxHxD) | 7.25“ x 6” x 1.25” |
| Housing | IP23 |
| Mounting system | Din Rail Mount |
| Status Display LEDs | From top to bottom: power, cloud connection, Bluetooth/Wi-Fi connection, serial communication with battery, error signal |
VIDEO LIBRARY

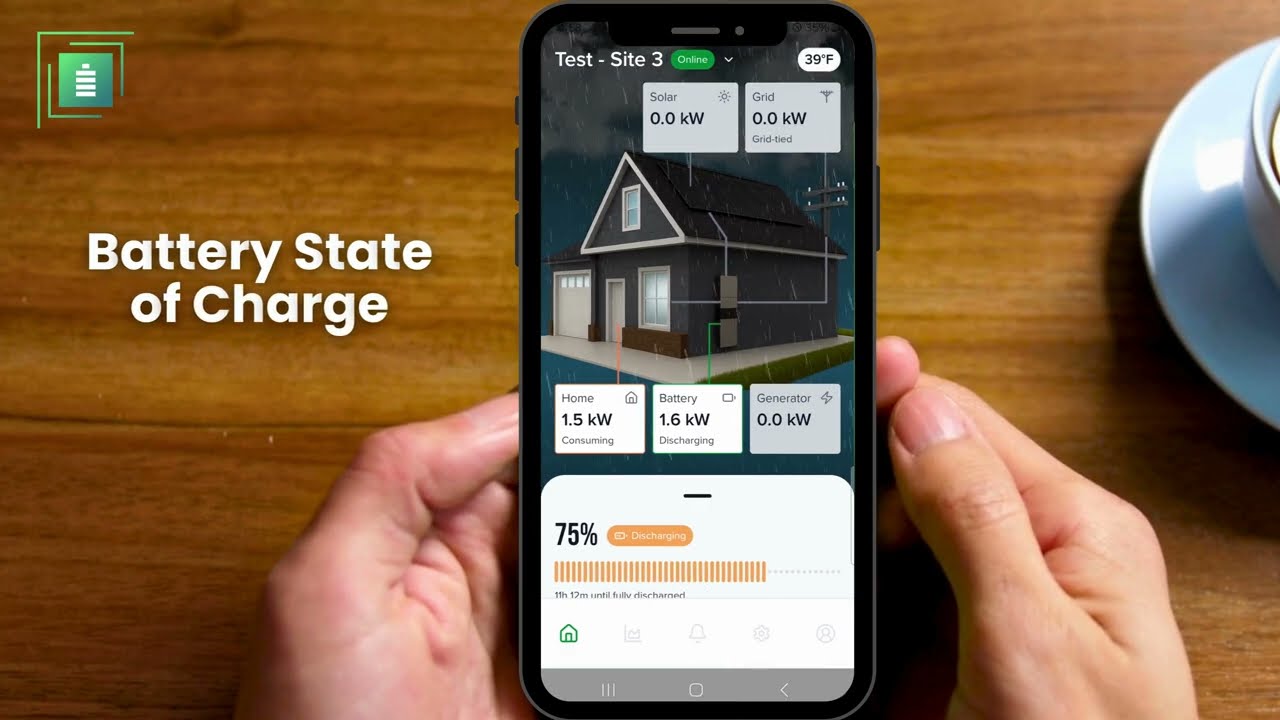

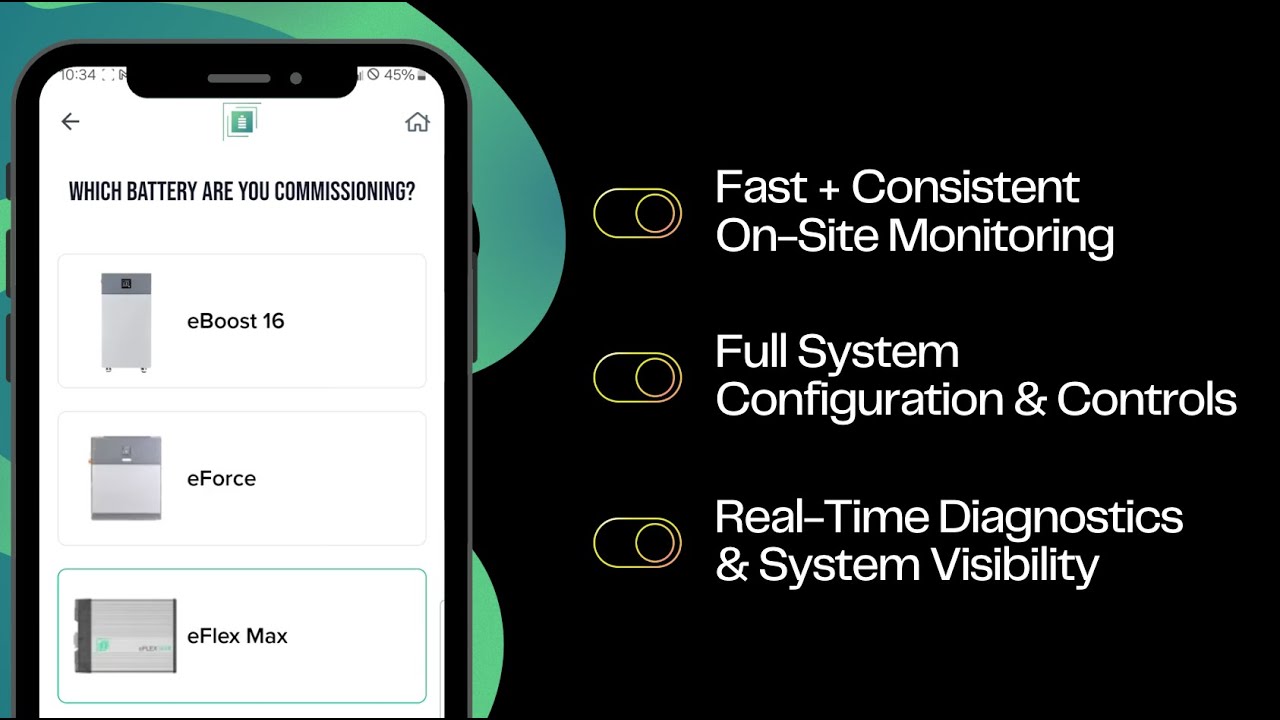

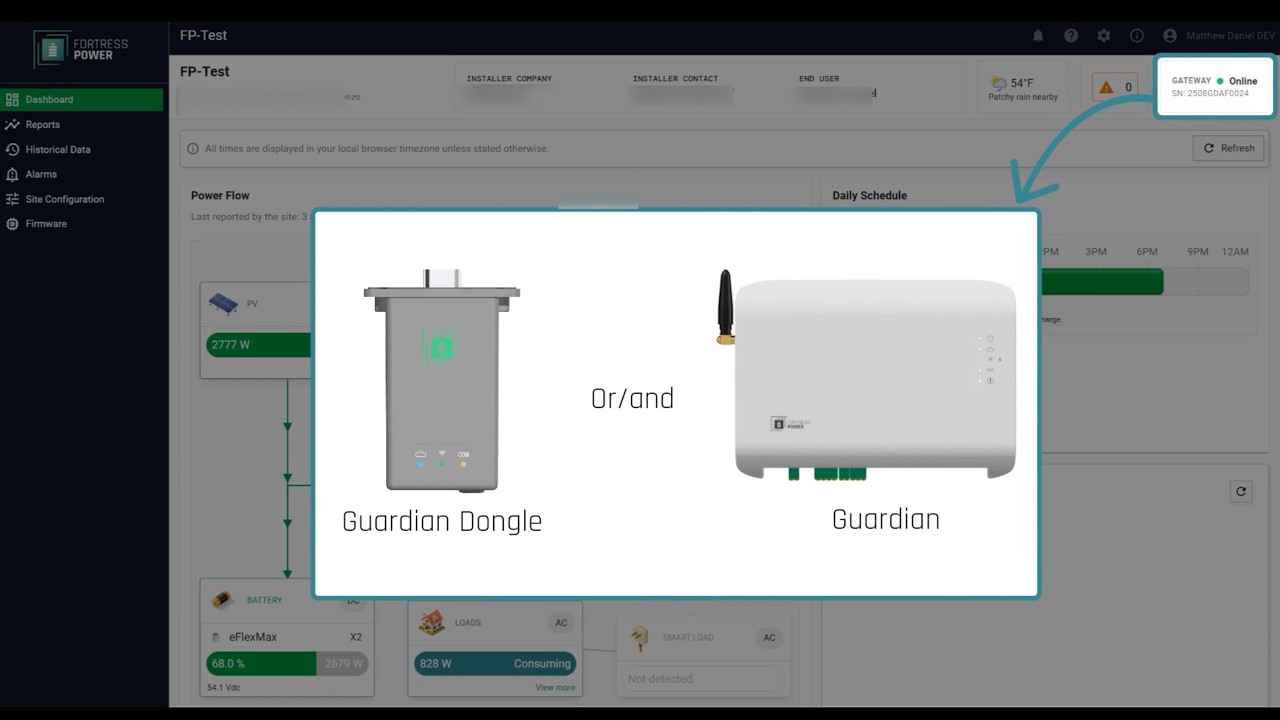

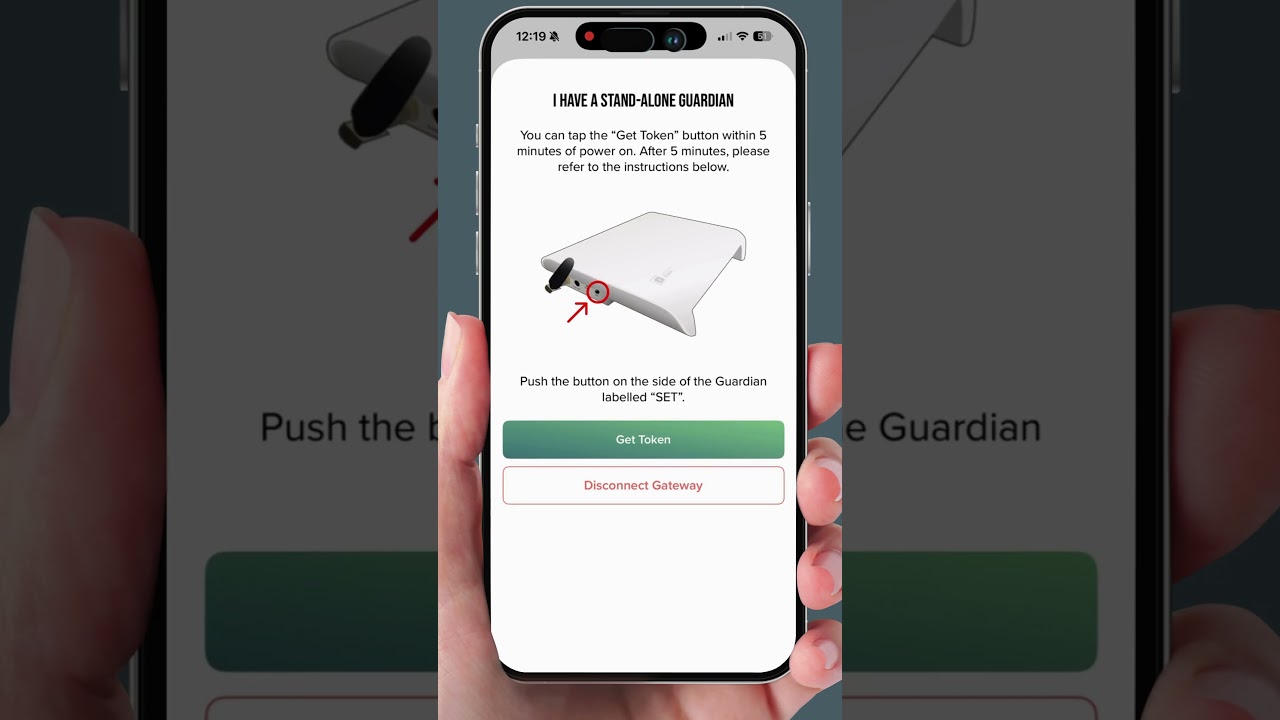

Guardian Video Library
PRODUCT COMPATIBILITY
Fortress Power Envy Inverters
Start Your Guardian Gateway Installation
If you are not participating in a Virtual Power Plant (VPP) program, be sure to read the technical note and the updated installation manual, as they contain important guidance regarding a cable in the box that should not be used outside of VPP applications.
