- Expandable from 18.5 kWh to 222 kWh for both residential and commercial buildings
- Competitively priced and easy to install with >98% round-trip efficiency
- 10-year warranty; up to 6,000+ cycles
- Overcharge and Deep Discharge Protection
- Over Current Protection
- Over-heat protection
- Voltage and Temperature Monitoring
- Cell Monitoring and Balancing
- Not compatible with eVault MAX
- Contact Sales for system expansion questions

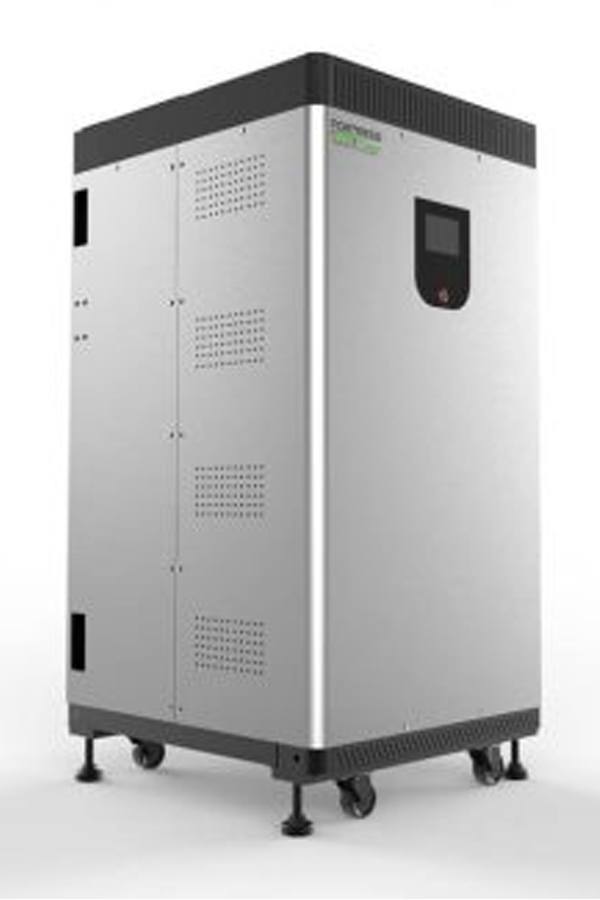

eVault 18.5kWh LFP Battery
eVault 18.5kWh LFP Battery
Description
- Expandable from 18.5 kWh to 222 kWh for both residential and commercial buildings
- Competitively priced and easy to install with >98% round-trip efficiency
- 10-year warranty
- Overcharge and Deep Discharge Protection
- Over Current Protection
- Over-heat protection
- Voltage and Temperature Monitoring
- Cell Monitoring and Balancing
- eVault Max can’t be retrofit to an existing eVault Classic system. If you’re looking to add eVault Classic to an existing system, please send your request to [email protected], or call us at (877)-497-6937
Product Info
General Specifications
Total Energy (kWh) | 18.5 |
Capacity[Ah] | 360 |
Nominal Voltage [V] | 51.2 (48) |
Voltage Range[V] | 48-55 |
Recommended Charge Current [A] | 100 |
Max. Charge Current (Continuous)[A] | 170 |
Max. Discharge Current (Continuous)[A] | 180 |
Max. Pulse Current (for 10 sec) [A] | 200 |
Charging Temperature[F] | 32 to 113 |
Discharging Temperature[F] | 32 to 113 |
Recommended Storage Temperature [F] | 50 to 95 |
Dimension [H xW x D, inch] | 38.8 x 19.2 x 21.3 |
Weight[lbs] | 476 |
Enclosure Protection Rating | IP21 |
Mounting options | Floor standing |
Certificates | UL 1624 |
Warranty | 5/10 Years |
Scalability | Maximum 12 in Parallel (222 kWh) |
Communication | CAN/RS485 |
High Current Circuit Breaker | 250A |
Efficiency | >98% |
Installation Guides / Warranty
eVault Owner / Installation Manual
eVault BMS Swap / Disassembly Guide
Inverter Guides (how to configure your inverter/charger)
Battery Firmware Download
eVault Warranty Letter
Overview
- Expandable from 18.5 kWh to 222 kWh for both residential and commercial buildings
- Competitively priced and easy to install with >98% round-trip efficiency
- 10-year warranty; up to 6,000+ cycles
- Overcharge and Deep Discharge Protection
- Over Current Protection
- Over-heat protection
- Voltage and Temperature Monitoring
- Cell Monitoring and Balancing
- Not compatible with eVault MAX
- Contact Sales for system expansion questions
Specifications
General Specifications
Total Energy (kWh) | 18.5 |
Capacity[Ah] | 360 |
Nominal Voltage [V] | 51.2 (48) |
Voltage Range[V] | 48-55 |
Recommended Charge Current [A] | 100 |
Max. Charge Current (Continuous)[A] | 170 |
Max. Discharge Current (Continuous)[A] | 180 |
Max. Pulse Current (for 10 sec) [A] | 200 |
Charging Temperature[F] | 32 to 113 |
Discharging Temperature[F] | 32 to 113 |
Recommended Storage Temperature [F] | 50 to 95 |
Dimension [H xW x D, inch] | 38.8 x 19.2 x 21.3 |
Weight[lbs] | 476 |
Enclosure Protection Rating | IP21 |
Mounting options | Floor standing |
Certificates | UL 1624 |
Warranty | 5/10 Years |
Scalability | Maximum 12 in Parallel (222 kWh) |
Communication | CAN/RS485 |
High Current Circuit Breaker | 250A |
Efficiency | >98% |
Downloads
Installation Guides / Warranty
eVault Owner / Installation Manual
eVault BMS Swap / Disassembly Guide
Inverter Guides (how to configure your inverter/charger)
Battery Firmware Download
eVault Warranty Letter
