Fortress Power Envy True 12 kW

12kW Whole Home Solar Storage Inverter

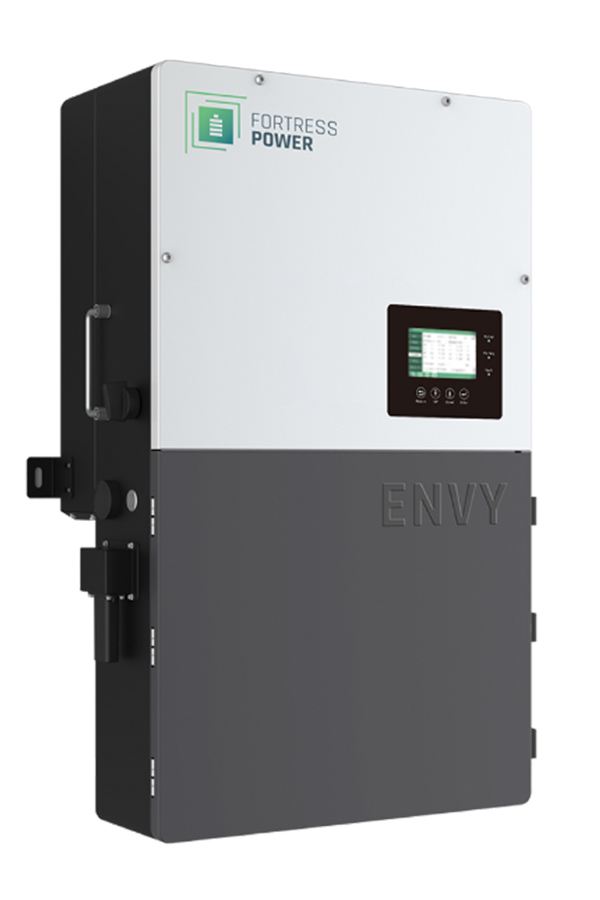

Fortress Power Envy True 12 - 12kW Inverter

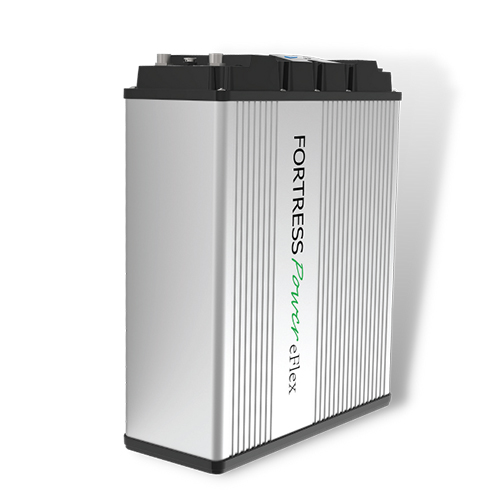

The Fortress Power Envy True 12 kW – a whole-home, all-in-one 12kW inverter solution. Paired with the Fortress Power eFlex 5.4 kWh, the eVault MAX 18.5 kWh or LFP-10 MAX batteries, the Envy features a 200A AC passthrough providing up to 12kW (50A @ 240V) or 10.4kW (50A @208V) of whole-home backup power or small commercial. The Envy features a built-in generator input with AC/DC coupling, on- and off-grid capabilities, plus a 3 MPPT output allowing for a maximum of 21 kW PV  array. The Envy is equipped with a built-in APsmart Module Level Rapid Shutdown Transmitter and Button, along with Pre-built AC & DC breakers allowing for fast installation and commissioning. Use our online monitoring app to access  your system from anywhere.

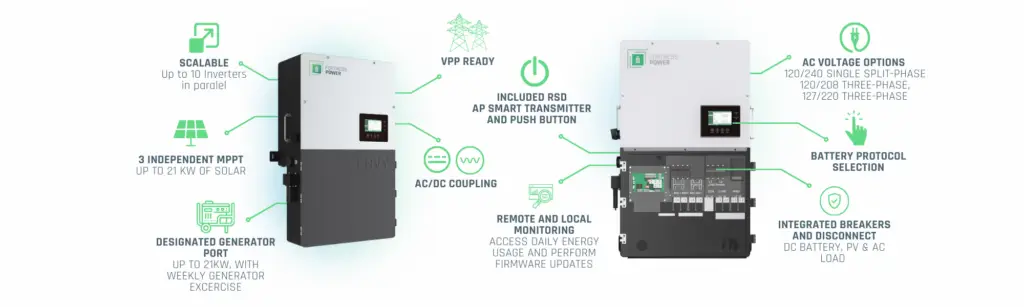

Key Features:

  • 200A AC passthrough current for whole home backup
  • 3 MPPT output for max. 21 kW PV array
  • AC, DC and AC/DC combined coupling
  • IP65 rated for Indoor & Outdoor Installation
  • Built-in Generator Input
  • 10 units in parallel
  • Local and remote monitoring/app
  • Color LCD touch screen
  • Batch Settings

Supported Applications:

  • Backup
  • Off-Grid
  • Zero Export
  • Time-of-Use
  • Peak Shaving
  • Demand Response Integration (coming soon)

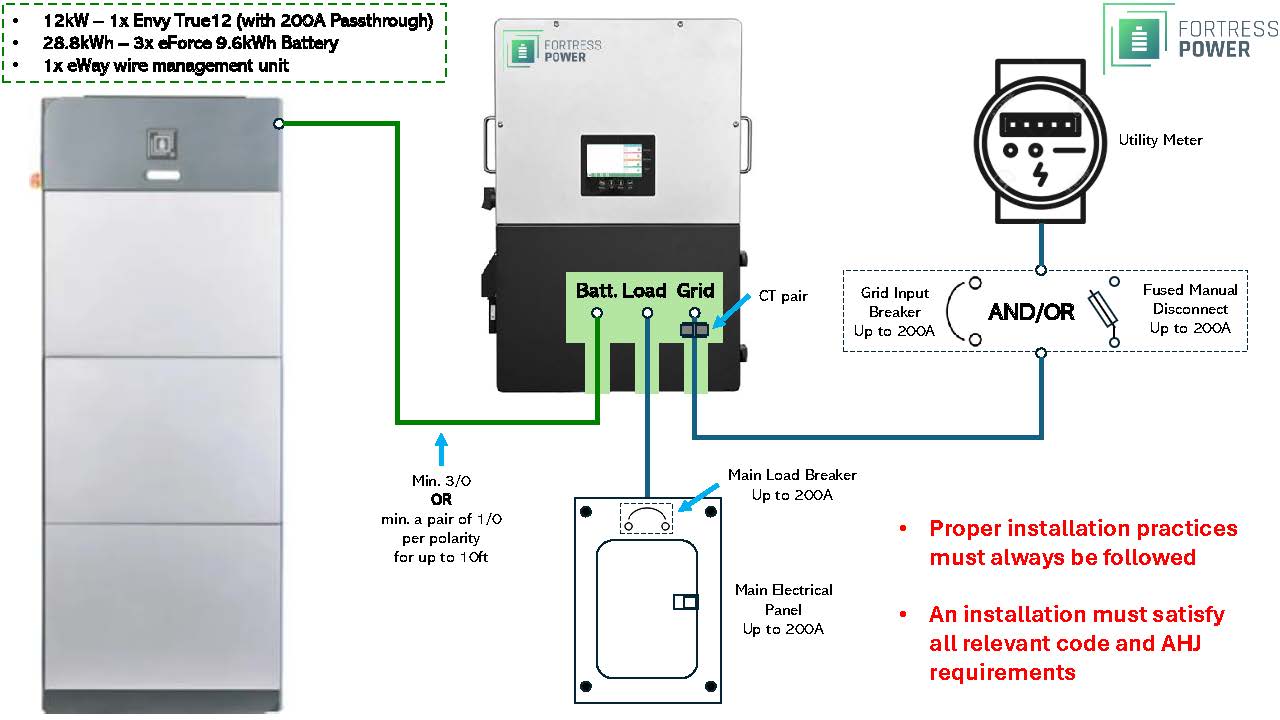

Whole-Home Backup / AC Passthrough One-Line Diagram

Fortress Power Envy True 12 One Line Diagram
