Darfon Inverter

H5001 Hybrid Inverter

Model Number: H5001

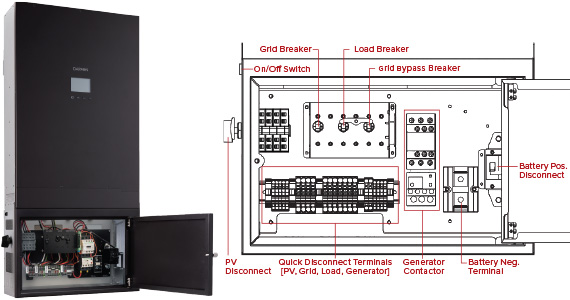

Darfon’s H5001 hybrid transformerless inverter is integrated with a distribution box to facilitate easy installation. The distribution box includes quick disconnect terminals, PV and battery disconnects, AC breakers, battery connectors and generator contactor. The H5001 supports a wide range of applications, including off-grid, self-use, net-metering, backup, time-of-use optimization and as a string inverter.
SOLAR DC INPUT
Max Power 6500W
Operation/MPPT Voltage Range 120 to 500VDC/ 250 to 430VDC
Main Start Voltage 150 VDC
Max Input Current 13A/13A (Two String Input)
INVERTER AC OUTPUT
Continuous Output Power @ 25°C 5000W
Overload 40sec/5sec/1sec @ 25°C 5500W/6500W/7500W
Rated Output Current (RMS) 21A (@120V and 240V)
Output Frequency (Auto Sensing) 50/60 Hz
Output Voltage L-N: 120V ± 3%; L-L: 240V ± 3%
AC INPUT FROM GRID
Automatic Transfer Relay Rating 48A
Typical Transfer Time 20ms
AC Input Voltage Range L-L: 180 to 280V (240V Nominal)
AC input Frequency Range 55 to 65 Hz
AC OUTPUT TO GRID
Grid Feed-In Current Range 0 to 24A (@240V)
Grid Feed-In Voltage Range L-L: 211 to 264V ± 3.0V
Grid Feed-In Frequency Range 59.4 to 60.4Hz ± 0.05Hz
EFFICIENCY
Peak PV to Grid 96%
CEC weighted PV to Grid 95.5%
DC BATTERY CHARGER
Max Charge / Discharge Current 60A / 150A
DC Voltage Range 42 to 60V (48V Nominal)
Compatible Battery Types AGM (default), Gel, Li-ion, LiFePO4, Custom
Suggested Battery Capacity Range 200 to 600Ah
GENERAL SPECIFICATIONS
Product Weight 39.4kg (86.8 lb)
Product Dimensions (H x W x D) 990x448x150mm (39x17.6x5.9in)
Protection Rating NEMA 1 Indoor / IP20
Operating Temperature 0 to 55°C (32 to 131°F), power derated above 40°C or 104°F
Storage Temperature -25 to 70°C (-13 to 158°F)
Compliances UL 1741 SA, Rule 21 compliant, IEEE 1547, FCC Class B
