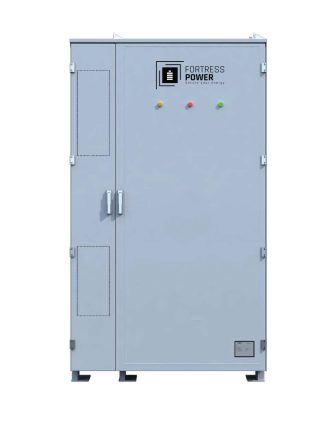

eSpire 233 Energy Storage System

eSpire 233 Energy Storage System

0 (0) Reviews

eSpire 233 Energy Storage System

Description


Safe Technology & Multi-level Protection

The solution uses the best-in-class Tier 1 Lithium Iron Phosphate (LFP) chemistry for the highest level of safety, thermal stability, and reliability; An integrated, multi-level Battery Management System (BMS) monitors, optimizes, and balances the system.

Compact Design for Flexible Install

The product has a slick and compact design that can be flexibly fit into indoor and outdoor space.

Advanced Liquid Cooling for the Extended Battery Lifespan

The unique liquid cooling system optimizes the battery thermal performance by 3 times, which extends the battery lifespan and increases your investment.

Turnkey System for Fast Install

Fully integrated, pre-configured package system reduces on-site installation time; includes inverter(s), battery trays, racks, BMS, local Controller, HVAC, fire suppression, isolation transformer and outdoor rated enclosure.

Easy & Flexible to scale (Easy scalability)

This outdoor rated, modular solution can be expanded to 2.80 MWH capacity easily (Max. 12 unit in parallel).

Excellent Local Support

Our US based technical support team can help you from project design to completion.

Category:

Product Info

• Peak shaving for demand charge management
• Load shifting for time-of-use savings
• Real and reactive power compensation to improve power quality
• Standalone operation in off-grid mode for power backup
• Store excess solar energy during the day and use at another time

Browse our Applications

Reliable source of renewable energy
you can trust to deliver off-grid living.

REQUEST ADDITIONAL INFO

Where to buy?

Browse our distribution partners worldwide.
High quality battery backup solutions.

BROWSE DISTRIBUTORS

How to become a dealer?

Enroll now to become a dealer.
Get free leads and marketing help.

BECOME A DEALER

Battery Data
Battery Bank Capacity [kWh] 233
Operation Voltage Range [V] 728.5 - 936.4
Nominal Voltage [V] 832
Battery Capacity [aH] 280
Cell Type LFP Prismatic
Cell Life @ 25C >6000
DOD 90%
Ambient Working Temperature -25 ~ 45C (-13 ~ 113 F)
Cooling Integrated Liquid Cooling
Battery Bank Scalability up to 15 (3.5 MWh)
Inverter Data
Rated AC Output Power [kVA] 125
Rated Grid Voltage Inverter Output 480V Delta
Rated Grid Voltage at Transformer 480V Phase Y (Wye)
Rate Grid Frequency [Hz] 60/50 Hz
Rated AC Current 150.4 A
Max. Continuous AC Curent 167 A
Current THD IEEE 1547 Compliant, <3% at rated power
Power Factor -1 to 1
Transformer Rating 125 kVA
System Data
Ambient Working Temperature -25 ~ 45C (-13 ~ 113 F)
Storage Temperature Range -25 ~ 45C (-13 ~ 113 F)
Certification UL1973, UL9540(pending), UL9540A, UL1741/1741SA(pending), IEC62619, IEC62477-1, IEC61000-6-2/4 GB/T 34133-2017, UL1741, IEEE1547.1, UL1741SA, IEC62477, IEC61000

Browse our Applications

Reliable source of renewable energy
you can trust to deliver off-grid living.

REQUEST ADDITIONAL INFO

Where to buy?

Browse our distribution partners worldwide.
High quality battery backup solutions.

BROWSE DISTRIBUTORS

How to become a dealer?

Enroll now to become a dealer.
Get free leads and marketing help.

BECOME A DEALER

eSpire 233 Data Sheet

Browse our Applications

Reliable source of renewable energy
you can trust to deliver off-grid living.

REQUEST ADDITIONAL INFO

Where to buy?

Browse our distribution partners worldwide.
High quality battery backup solutions.

BROWSE DISTRIBUTORS

How to become a dealer?

Enroll now to become a dealer.
Get free leads and marketing help.

BECOME A DEALER

Browse our Applications

Reliable source of renewable energy
you can trust to deliver off-grid living.

REQUEST ADDITIONAL INFO

Where to buy?

Browse our distribution partners worldwide.
High quality battery backup solutions.

BROWSE DISTRIBUTORS

How to become a dealer?

Enroll now to become a dealer.
Get free leads and marketing help.

BECOME A DEALER

Overview

• Peak shaving for demand charge management
• Load shifting for time-of-use savings
• Real and reactive power compensation to improve power quality
• Standalone operation in off-grid mode for power backup
• Store excess solar energy during the day and use at another time

Browse our Applications

Reliable source of renewable energy
you can trust to deliver off-grid living.

REQUEST ADDITIONAL INFO

Where to buy?

Browse our distribution partners worldwide.
High quality battery backup solutions.

BROWSE DISTRIBUTORS

How to become a dealer?

Enroll now to become a dealer.
Get free leads and marketing help.

BECOME A DEALER

Specifications

Battery Data
Battery Bank Capacity [kWh] 233
Operation Voltage Range [V] 728.5 - 936.4
Nominal Voltage [V] 832
Battery Capacity [aH] 280
Cell Type LFP Prismatic
Cell Life @ 25C >6000
DOD 90%
Ambient Working Temperature -25 ~ 45C (-13 ~ 113 F)
Cooling Integrated Liquid Cooling
Battery Bank Scalability up to 15 (3.5 MWh)
Inverter Data
Rated AC Output Power [kVA] 125
Rated Grid Voltage Inverter Output 480V Delta
Rated Grid Voltage at Transformer 480V Phase Y (Wye)
Rate Grid Frequency [Hz] 60/50 Hz
Rated AC Current 150.4 A
Max. Continuous AC Curent 167 A
Current THD IEEE 1547 Compliant, <3% at rated power
Power Factor -1 to 1
Transformer Rating 125 kVA
System Data
Ambient Working Temperature -25 ~ 45C (-13 ~ 113 F)
Storage Temperature Range -25 ~ 45C (-13 ~ 113 F)
Certification UL1973, UL9540(pending), UL9540A, UL1741/1741SA(pending), IEC62619, IEC62477-1, IEC61000-6-2/4 GB/T 34133-2017, UL1741, IEEE1547.1, UL1741SA, IEC62477, IEC61000
