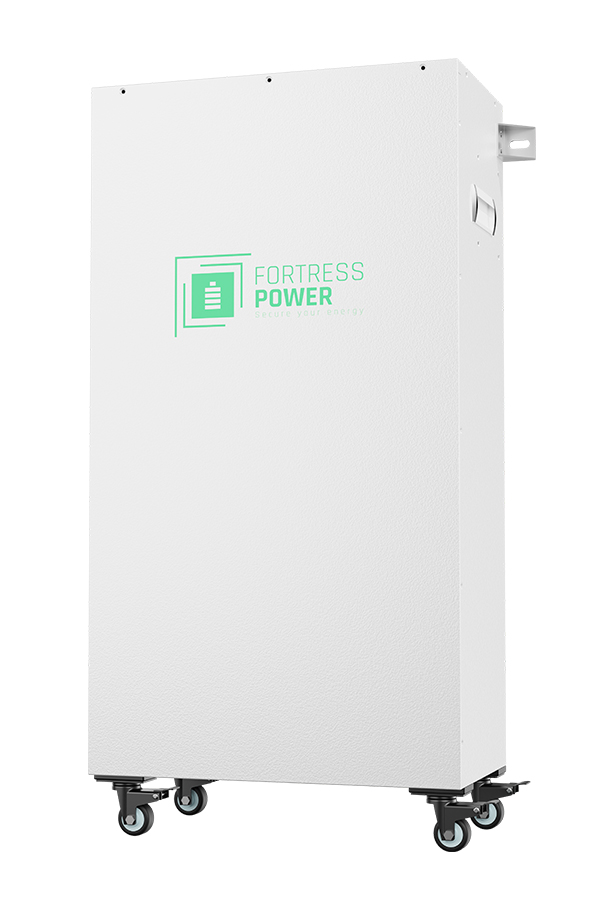

LFP-10 MAX – 10kWh Lithium Battery
Description
Our High-Performance LFP-10 Max battery is easy to install, safe, and reliable. It provides the lowest lifetime energy cost for both new solar customers and retrofit customers.
Fortress Power Lithium Batteries have the industry’s most advanced technology with a Battery Management System that integrates multilevel safety concepts:
- Overcharge and Deep Discharge Protection
- Voltage and Temperature Observation
- Cell Monitoring and Balancing
- Built-in accessible 150 Amp DC breaker On/Off switch
The LFP-10 Max is Easy to Integrate with Solar, or Operate Independently to Provide your Home Power Day or Night
Specifications
Key Features
Downloads
Specifications
General | |
| Name | LFP-10 |
| Total Energy(kWh) | 10.24 |
| Max. Charge Current (Continuous) [A] | 120 |
| Max. Discharge Current (Continuous) [A] | 120 |
| Max. Pulse Current (for 5 sec) [A] | 150 |
| Capacity [Ah] | 200 |
| Voltage Range [V] | 48-58.4 |
| Charging Temperature [F] | 32 to 113 |
| Discharging Temperature [F] | 32 to 114 |
| Storage Temperature [F] | 41 to 113 |
| Dimension [L x W x H, inch] | 17.3 x 9.4 x 33.8 |
| Weight [lbs] | 210 |
| Life Cycles | 6000 @ 80% DoD |
| Round Trip Efficiency | >98% |
Key Features
- High Performance – Large power capacity, with a fast charging and continuous discharge power, creating an 98% round-trip conversion.
- Consistent Reliability – Lithium Ferro Phosphate (LFP) technology operates a wider temperature range providing dependable performance
- Superior Safety – Manufactured at the highest standards. LFP is proven to be one of the safest Lithium technologies in the industry.
- Easy to Install – Our compact design saves space and can be conveniently installed.
Downloads
